Pushbuttons and switches of the QUARTEX®-R-JUWEL series
Product information
Sketches

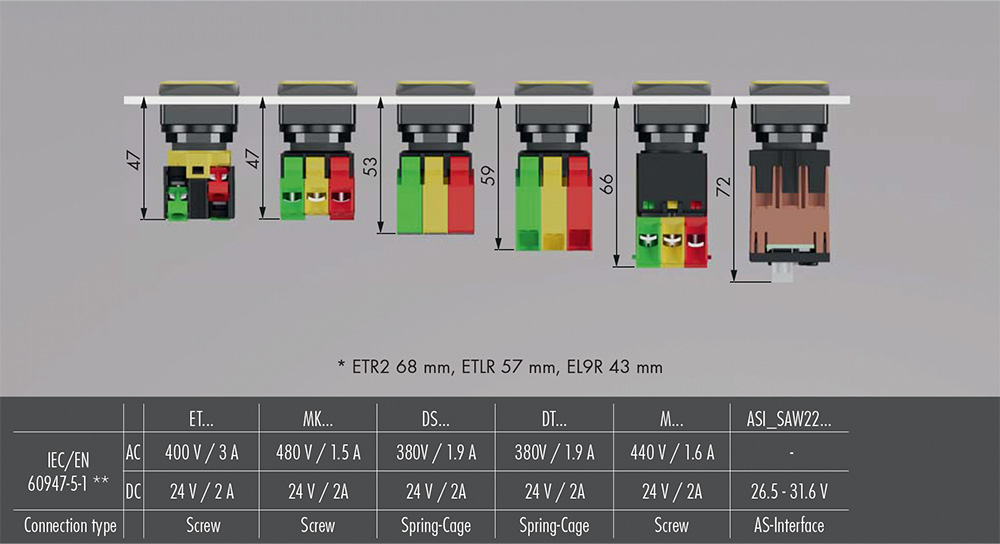

Mounting depth dimensions
Product configurator
| Front dimension | 30 x 30 mm |
|---|---|
| Panel cut-out | 26 x 26 mm |
| Front bezel height | 6 mm |
| Travel | 6 mm |
| Degree of protection* | IP65/IP67 |
| Front bezel colours |
|
* individual degree of protection, depending on the respective type
** maximum voltage or current values, depending on the type they may also be lower, e.g. for gold-plated contacts or depending on the number of connections
